Documentation

Odin Samsung Driver

Device Requirements

• Samsung Galaxy A54 5G (SM-A546E or SM-A546B) • Stock firmware with the required bootloader • Unlocked bootloader

PC Requirements

• Windows 10 or Windows 11 (64-bit recommended) • Odin (Samsung flashing tool) • Samsung USB Drivers

Recovery Requirements:

• TWRP (Team Win Recovery Project) or • OrangeFox Recovery • Compatible with your device model

File Requirements

• LichUI ROM

Essential Backups:

• Personal data backup (photos, contacts, etc.) • App data backup (using Titanium Backup or similar) • EFS partition backup (for IMEI restoration)

Backup Storage:

• External storage device • Cloud storage service • PC with sufficient space • Multiple backup locations (recommended)
⚠️ WARNING: Installing custom firmware can damage your device if not done correctly. Proceed at your own risk.
⚠️ Guaranteed: Unlocking the bootloader and installing a custom ROM can void your device's warranty, cause loss of knox, among other things.
▶

Firmware Stock

• Samsung Galaxy A54 5G (SM-A546E o SM-A546B)
• Download firmware stock required for LichUI (view Add-ons page), and extract
• Download and extract Odin
• Download and install Samsung Driver
• Reboot your device into bootloader mode
• Connect your device to your PC via USB
• Open Odin and select firmware sctock files; Bl, AP, CP, CSC

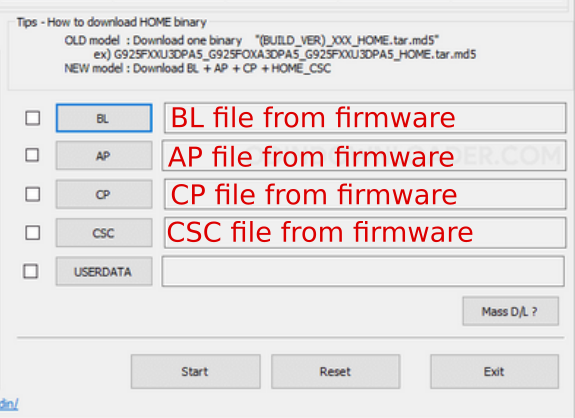

Odin Firmware Selection
• Click on Start and wait for the process to finish
• Odin finishes autoreboot and skip initial setup
• Connect your device to internet
• Activate developer options
• Enable OEM unlocking and USB debugging
• Continue with recovery installation
▶

Custom Recovery

• Reboot your device into bootloader mode
• Connect your device to your PC via USB
• Open Odin and select files; Recovery in AP, Vbmeta in USERDATA

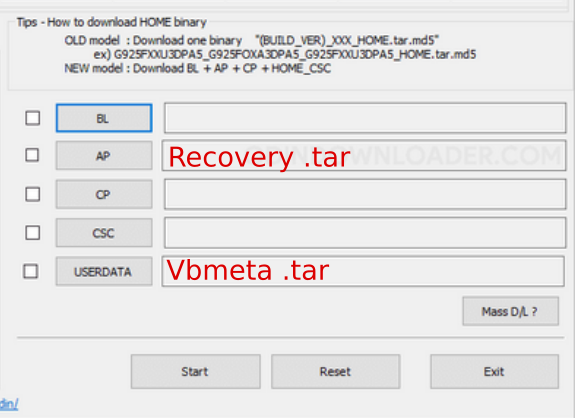

Odin Recovery Selection
• In Odin Options uncheck auto-reboot
• Click on Start and wait for the process to finish
• Now hold down the power and volume down buttons until the device turns off the screen, quickly hold down the power and volume up buttons.
• Now in the recovery, you have to do "Format data"
• Reboot system and skip initial setup<
• Connect your device to internet
• Activate developer options
• Enable OEM unlocking and USB debugging
• Continue with LichUI installation
▶

LichUI

• For this step you must already have the required stock firmware and custom recovery installed
• Download LichUI ROM (LichUI_X.X.X_a54x), and coppy in your device internal storage
• Reboot in recovery mode
• Flash LichUI ROM
• Format data
• Reboot system
• Enjoy LichUI

OTA Updater for LichUI

LichUI includes an OTA (Over-The-Air) updater to keep your device updated with the latest improvements and fixes.

What are OTA Updates?

OTA updates allow you to download and install new versions of LichUI directly from your device, without the need for a computer. However, there are updates that will require a clean installation, when there is a binary change in the stock firmware.

Types of Updates

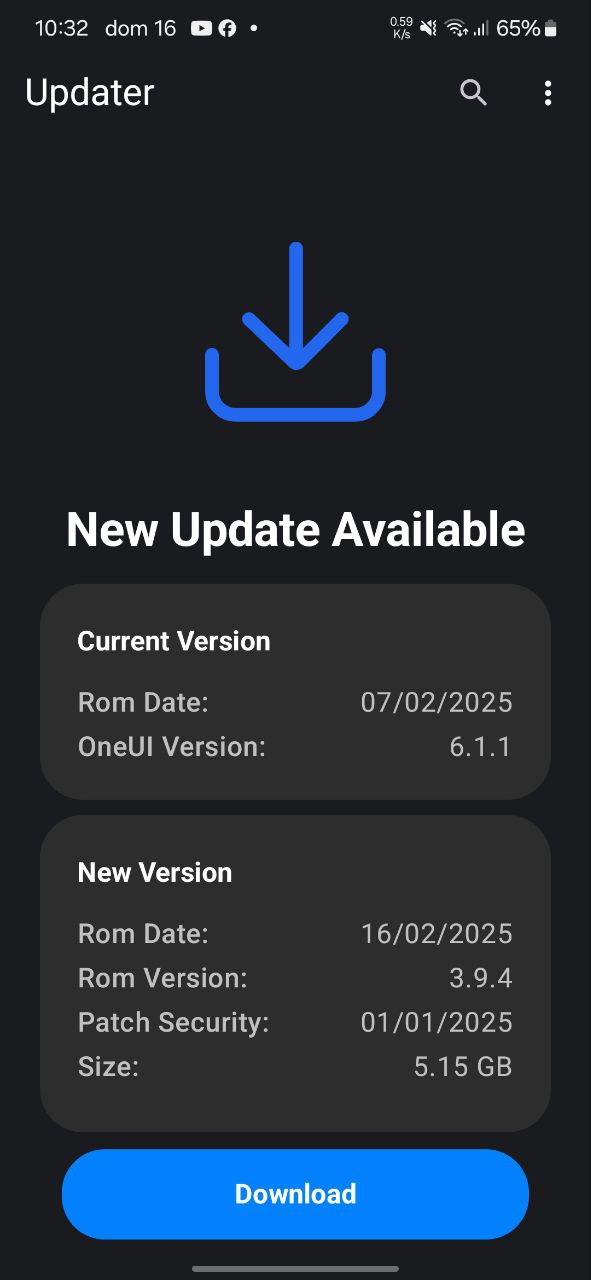

Updates via OTA • Sames Bootloader and Binary Odin Recovery Selection

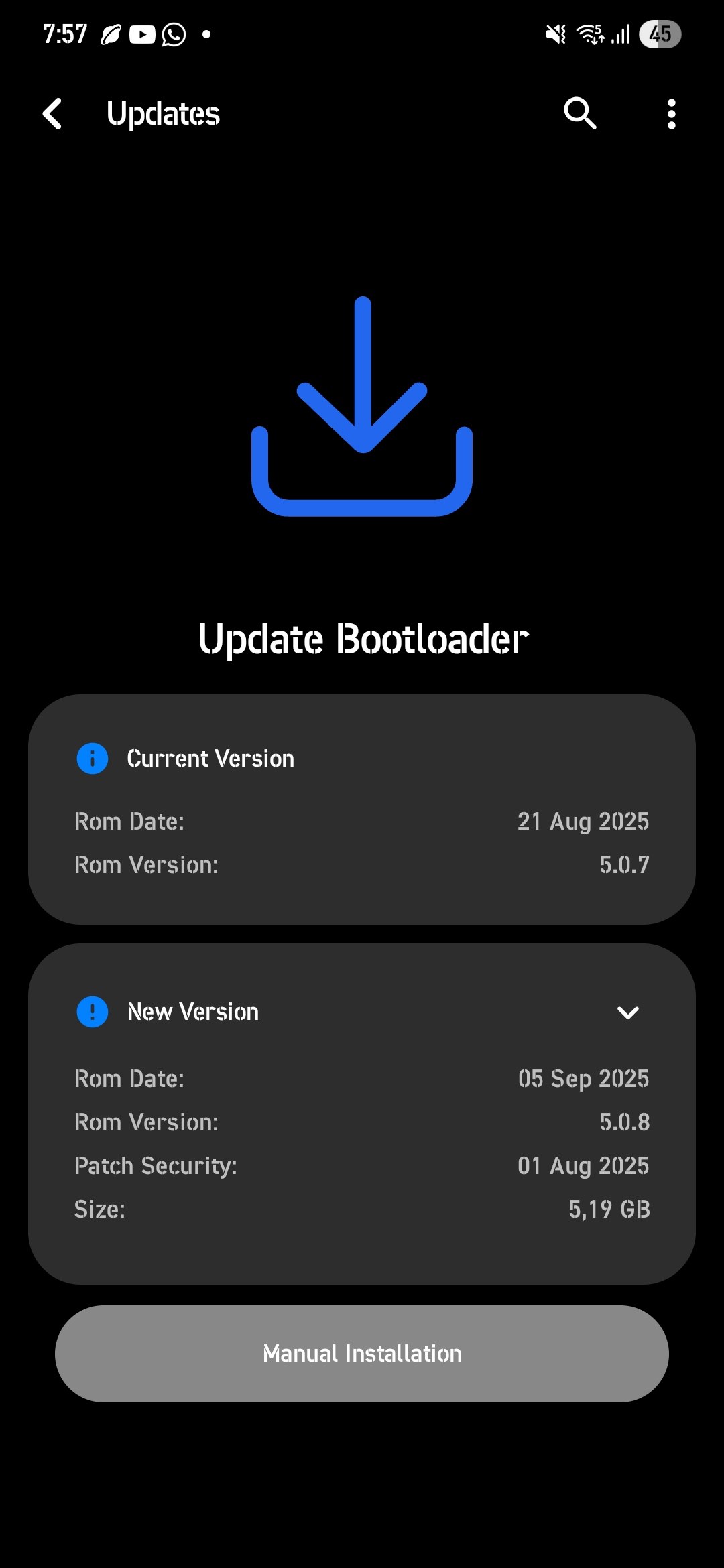

Updates Manual • Different bootloader and binary Odin Recovery Selection
Requirements for OTA App • Root accesss (Magisk, Ksu, etc) Download speed • We currently do not have our own server, which causes OTA downloads to be slow depending on the time and region. • If you would like to support the project, you can make a donation to purchase a better server (the monthly price per server is over $10 USD), or if you have your own server, you can collaborate with the project.
